TAGA Harmony TTP-300 Phono Amplifier

$295.00

SKU: TTP-300 Categories: ,

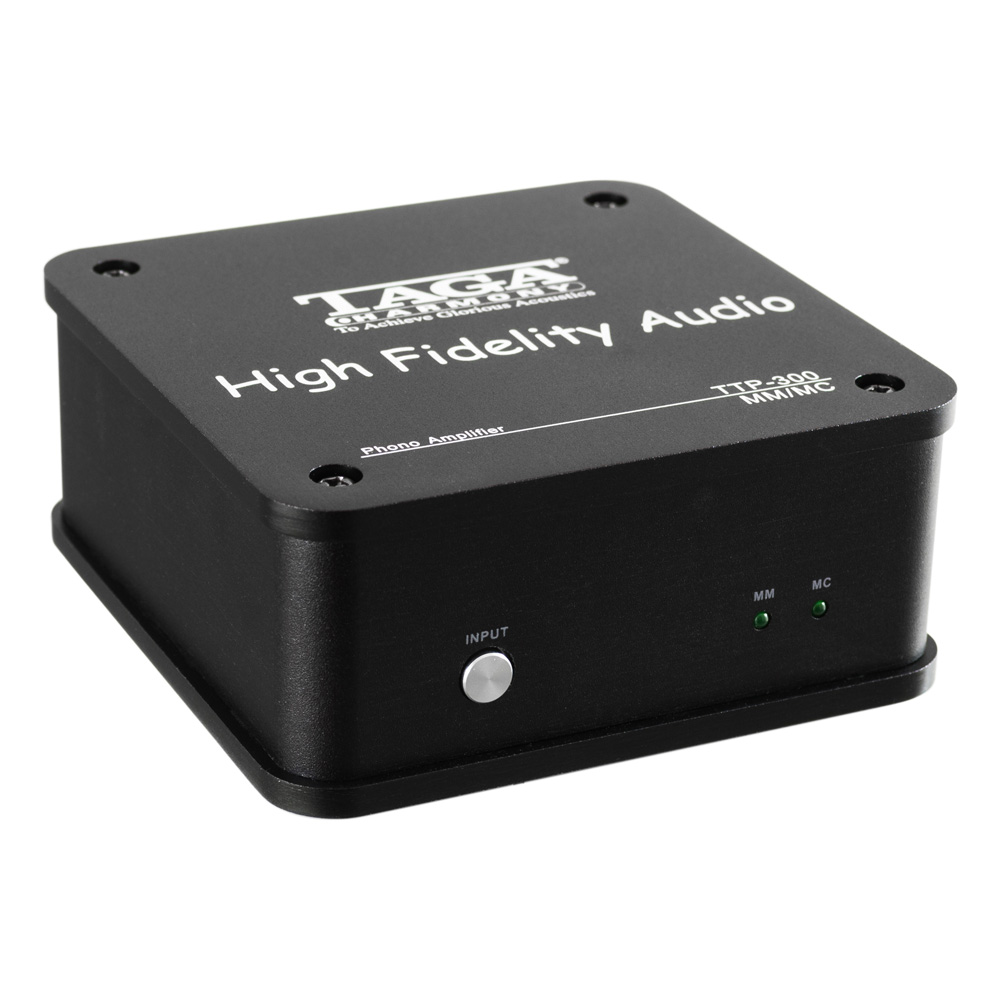

TAGA Harmony TTP-300 Phono Amplifier

TTP-300 is a miniature phono amplifier, which accepts turntables equipped with both MM and MC cartridges so you can enjoy music from your favourite vinyl records.

Out of stock

TAGA Harmony TTP-300 Phono Amplifier

TTP-300 is a miniature phono amplifier, which accepts turntables equipped with both MM and MC cartridges so you can enjoy music from your favourite vinyl records.

The analogue output allows easy connection to a line input of your amplifier.

Key features:

  • Front MM/MC selector for easy switching
  • Very rigid and luxurious steel-aluminium casing provides perfect shielding of the phono stage
  • Very accurate RIAA equalization
  • Integrated Circuits with very low noise level
  • Extremely low output impedance



Colours

Black

Design Phono amplifier MM/MC
Analog inputs Phono (MM/MC)
Phono input voltage MM: 300mV @ 3mV/1kHz
MC: 300mV @ 0.3mV/1kHz
Gain MM: 40dB
MC: 60dB
Noise floor MM: 86dB (94dB A-weighted)
MC: 68dB (75dB A-weighted)
RIAA Equalisation 20Hz – 20kHz / max. 0.5dB

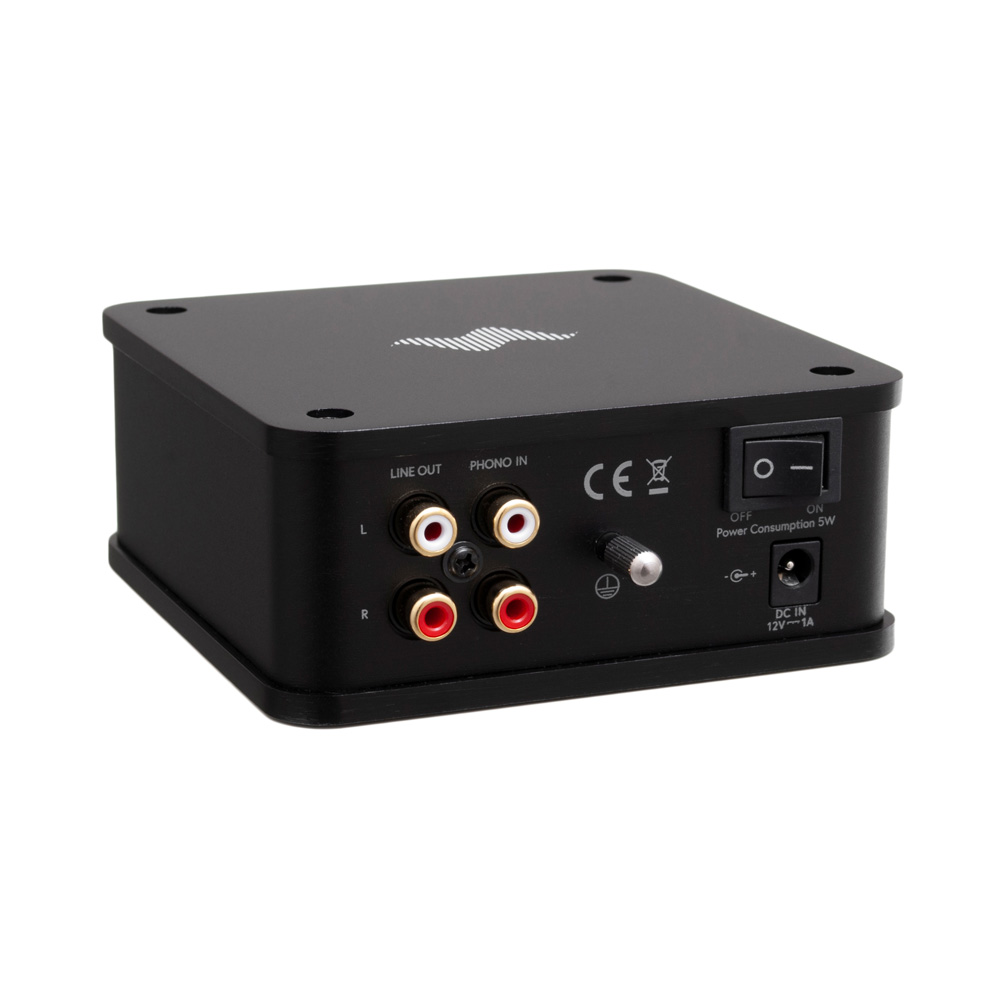

Analog outputs RCA Pre-Out (max 9.5V/1kHz)
Frequency response 20Hz – 35KHz (0.5dB)
Total Harmonic Distortions MM: 0.01%
MC: 0.05%
Signal/Noise ratio 129dB (A-Weighted)
Features / accessories DC power adapter
AC power / power consumption DC 12V, 1A
AC 100-240V 50/60Hz, 5W
Dimensions (H x W x D) 5.4 x 11.3 x 11.3 cm
(adapter 2.3 x 4.3 x 9.7 cm)
Weight 0.7 kg / pc.
